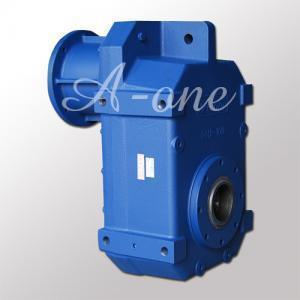

Parallel shaft gear units--GM7.5

Product ID: GM7.5-SERIES(A-one)

Gear boxes are designed with helical gear which makes it operate smoothly and quietly. It is characteristic of high torque and low backlash.

The A-one gear units apply modular design. Ratios are designed and selected to correspond with the normal usage of customers. Gear units are available for foot or flange mounting and can be installed in any directions and positions provided.

Specification:
Max. output torque: 11000Nm
Ratio: 11 ~ 224
Adapter motor power: 3.7kW ~45 kW
Output speed: 320rpm ~ 4rpm
Output hollow shaft: key way 90mm or 100mm

Options：
Output flange
Output shaft

Specifications:

Gear unit Type	I Ratio	Output speed n2		Output Torque T2	input torque of input unit T1(Nm) (for Fs=1.0)
Gear unit Type	I Ratio	(60Hz) rpm	(50Hz) rpm	Nm	25	50	70	120	190	240	290
GM7.5-4	4.10	439.16	365.96	4000	○	○	○	○	○	○	○
GM7.5-5	4.89	368.18	306.82	4200	○	○	○	○	○	○	○
GM7.5-6	5.90	304.84	254.03	4400	○	○	○	○	○	○	○
GM7.5-7	7.26	247.96	206.63	4600	○	○	○	○	○	○	○
GM7.5-9	9.33	192.93	160.77	7900	○	○	○	○	○	○	○
GM7.5-11	10.94	164.52	137.10	8200	○	○	○	○	○	○	○
GM7.5-14	13.45	133.82	111.52	8600	○	○	○	○	○	○	○
GM7.5-18	18.36	98.05	81.71	10000	○	○	○	○	○	○	○
GM7.5-22	22.57	79.75	66.46	10000	○	○	○	○	○	○	○
GM7.5-28	27.10	66.41	55.34	10000	○	○	○	○	○	○	○
GM7.5-36	36.06	49.92	41.60	11000	○	○	○	○	○	○	○
GM7.5-45	44.35	40.58	33.82	11000	○	○	○	○	○	○	-
GM7.5-56	56.20	32.03	26.69	11000	○	○	○	○	○	-	-
GM7.5-71	74.42	24.19	20.16	11000	○	○	○	○	-	-	-
GM7.5-90	94.30	19.09	15.91	11000	○	○	○	-	-	-	-
GM7.5-112	111.23	16.18	13.49	11000	○	○	○	-	-	-	-
GM7.5-140	143.82	12.52	10.43	11000	○	○	○	-	-	-	‐
GM7.5-180	176.89	10.18	8.48	11000	○	○	-	-	-	-	‐
GM7.5-224	224.13	8.03	6.69	11000	○	‐	‐	‐	‐	‐	‐

Certificate:

CE Approved
China CCC certificate(3C)

Order Information:

Minimum Order: Negotiable
FOB: Taichung port, Keelung port
