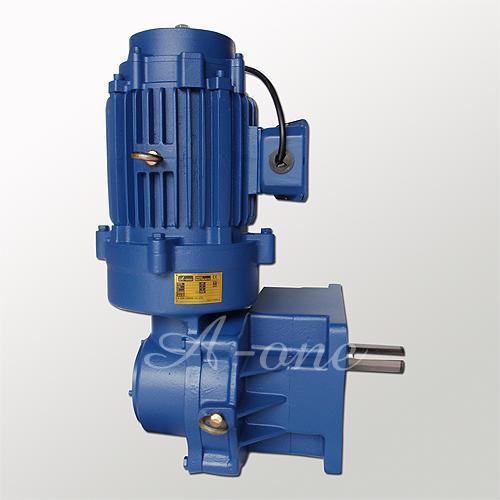

Angular gear motor for bogie crane LK-AFW-5.5A
Product ID: LK-AFW-5.5A SERIES(CHEC)
The gear boxes are designed with soft start which makes it operate smoothly and quietly. It is characteristic of reducing impact and increasing long life.
The motor are high starting torque and high output load, The brake of motor can be easily adjusted brake torque.
Specification:
Power: 5.5kWx 4P or 3.7kWx6P, 3.0/1.5kW x 4/8P , 3.0/1.0kW x 4/12P
Power supply: 200V~600V/(50/60Hz)
Ratio: 18.95,13,65
With output pinion ( M5.0, M6.0, M7.0, M8.0 )
Certificate:
- CE Approved
- China CCC certificate(3C)
Order Information:
- Minimum Order: Negotiable
- FOB: Taichung port, Keelung port
