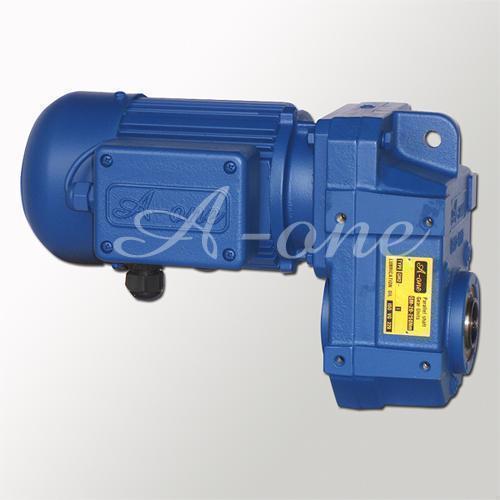

Parallel Shaft Gearmotor--GM2

Parallel Shaft Gear Motor

More Details

Product ID: GM2-SERIES(A-one)

The gearmotor, or gear box, is designed with helical gear which makes it operate smoothly and quietly. It is a complete motive force system with an electric motor and an integrated reduction gear train, characterizing high torque and low backlash. Normally the gearmotor is flexible in sizes as they can lift a building when they are large while they can also drive a clock when they are in small size.

The A-One gearmotor applies modular design. Ratios are designed and selected to correspond with the normal usage of customers. Each of the unit for the gear is available for foot or flange mounting and can also be installed in any directions and positions provided.

A-One gearmotor has been a manuacturer of solutions within geared motors for almost 4 decades. We provide products of the highest quality with focus on flexible solutions, reliability and customer understanding. Please do not hesitate and contact to us for further information today!

Specification:
Max. output torque: 250Nm
Ratio of gearmotor: 4-224
Power: 0.18kW-1.1kW
Output speed: 750rpm-4rpm
Output hollow shaft: 25mm ( with key way or spline )

Options for gearmotor：
Output flange
Output shaft
Spring operated disc brake, DC-Voltage
Forced cooling fan
Manual release of brake
Space heater
Thermal protector

Specifications:

Gear unit Type(gearmotor=GM)	I Ratio	Output speed n2		Output torque T2	Input torque of input unit T1(Nm) (for Fs=1.0)
		(60Hz)rpm	(50Hz)rpm	Output torque T2	Input torque of input unit T1(Nm) (for Fs=1.0)
		(60Hz)rpm	(50Hz)rpm	Nm	1	2.5	5	10	15	25	45
GM 2-4	4.10	439.02	365.85	180	○	○	○	○	○	-	-
GM 2-5	5.16	348.84	290.70	200	○	○	○	○	○	-	-
GM 2-6	6.30	285.71	238.10	200	○	○	○	○	○	-	-
GM 2-7	7.13	252.45	210.38	220	○	○	○	○	○	-	-
GM 2-9	9.38	191.90	159.91	220	○	○	○	○	○	-	-
GM 2-11	10.96	164.23	136.86	250	○	○	○	○	○	-	-
GM 2-14	13.63	132.06	110.05	250	○	○	○	○	○	-	-
GM 2-18	18.09	99.50	82.92	250	○	○	○	○	-	-	-
GM 2-22	22.48	80.07	66.73	250	○	○	○	○	-	-	-
GM 2-28	26.93	66.84	55.70	250	○	○	○	-	-	-	-
GM 2-36	36.34	49.53	41.28	250	○	○	○	-	-	-	-
GM 2-45	44.78	40.20	33.50	250	○	○	○	-	-	-	-
GM 2-56	56.03	32.13	26.77	250	○	○	-	-	-	-	-
GM 2-71	73.89	24.36	20.30	250	○	○	-	-	-	-	-
GM 2-90	92.44	19.47	16.23	250	○	○	-	-	-	-	-
GM2-112	114.91	15.66	13.05	250	○	-	-	-	-	-	-
GM2-140	140.26	12.83	10.69	250	○	-	-	-	-	-	-
GM2-180	172.87	10.41	8.68	250	○	-	-	-	-	-	-
GM2-224	216.28	8.32	6.94	250	○	-	-	-	-	-	-

Certificate:

CE Approved
China CCC certificate(3C)

Order Information:

Minimum Order: Negotiable
FOB: Taichung port, Keelung port
