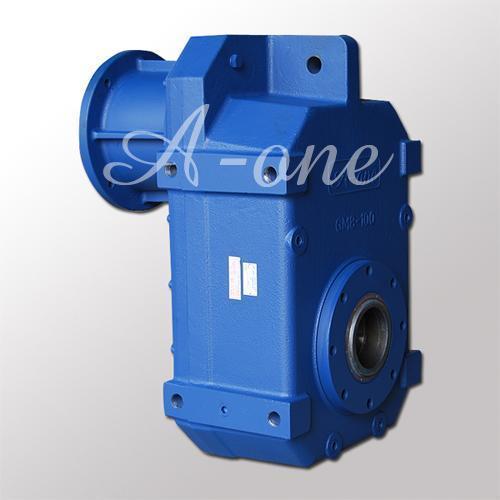

Parallel shaft gear units--GM8

Parallel shaft gear units

More Details

Product ID: GM8-SERIES(A-one)

Gear boxes are designed with helical gear which makes it operate smoothly and quietly. It is characteristic of high torque and low backlash.

The A-one gear units apply modular design. Ratios are designed and selected to correspond with the normal usage of customers. Gear units are available for foot or flange mounting and can be installed in any directions and positions provided.

Specification:
Max. output torque: 16500Nm
Ratio: 11 ~ 224
Adapter motor power: 1.1kW ~45 kW
Output speed: 320rpm ~ 4rpm
Output hollow shaft: key way 100mm or 110mm

Options：
Output flange
Output shaft

Specifications:

Gear unit Type	I Ratio	Output speed n2		Output torque T2	Input torque of input unit T1(Nm) (for Fs=1.0)
		(60Hz)rpm	(50Hz)rpm	Output torque T2	Input torque of input unit T1(Nm) (for Fs=1.0)
		(60Hz)rpm	(50Hz)rpm	Nm	50	70	100	120	190	240	290
GM 8-4	4.26	422.54	352.11	7400	○	○	○	○	○	○	○
GM 8-5	5.07	355.03	295.86	7700	○	○	○	○	○	○	○
GM 8-6	6.09	295.57	246.31	8100	○	○	○	○	○	○	○
GM 8-7	7.45	241.61	201.34	8400	○	○	○	○	○	○	○
GM 8-9	9.33	192.93	160.77	8700	○	○	○	○	○	○	○
GM 8-11	11.21	160.54	133.78	14500	○	○	○	○	○	○	○
GM 8-14	13.71	131.26	109.38	15000	○	○	○	○	○	○	○
GM 8-18	18.75	95.99	79.99	15000	○	○	○	○	○	○	○
GM 8-22	22.94	78.48	65.40	15000	○	○	○	○	○	○	○
GM 8-28	28.73	62.66	52.22	15000	○	○	○	○	○	○	○
GM 8-36	35.97	50.04	41.70	16500	○	○	○	○	○	○	○
GM 8-45	45.09	39.92	33.27	16500	○	○	○	○	○	○	○
GM 8-56	55.46	32.46	27.05	16500	○	○	○	○	○	○	○
GM 8-71	70.27	25.62	21.35	16500	○	○	○	○	○	-	-
GM 8-90	92.75	19.41	16.17	16500	○	○	○	○	-	-	-
GM8-112	117.52	15.32	12.76	16500	○	○	○	○	-	-	-
GM8-140	144.02	12.50	10.41	16500	○	○	○	-	-	-	-
GM8-180	177.14	10.16	8.47	16500	○	○	-	-	-	-	-
GM8-224	224.45	8.02	6.68	16500	○	○	-	-	-	-	-

Certificate:

CE Approved
China CCC certificate(3C)

Order Information:

Minimum Order: Negotiable
FOB: Taichung port, Keelung port
