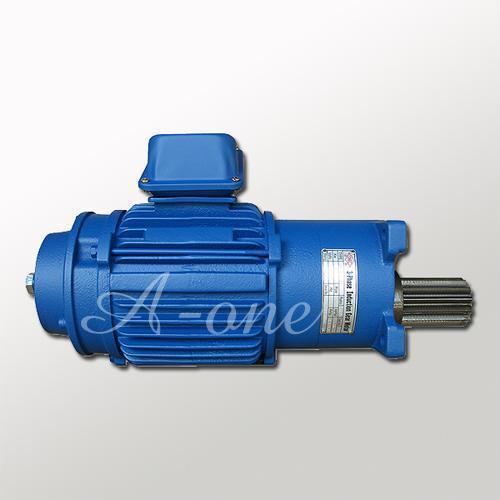

Gear motor for end carriage LK-R-0.75A
Product ID: LK-R-0.75A SERIES(CHEC)
The gear boxes are designed with soft start which makes it operate smoothly and quietly. It is characteristic of reducing impact and increasing long life. The motor are high starting torque and high output load, The brake of motor can be easily adjusted brake torque.
Specification:
Power: 0.75kWx 4P or 0.55kWx6P, 0.37/0.18kW x 4/8P ,
0.37/0.12kW x 4/12P
Power supply: 200V~600V/(50/60Hz)
Ratio: 7.3
With output pinion ( M3.0, M3.5, M4.0 )
Specifications:
|
Type |
|
Pole |
Ratio |
60Hz |
50Hz |
Accessory |
||
|
Output speed |
Output torque (Nm) |
Output speed |
Output torque |
|||||
|
LK-R-0.75A |
0.75 |
4 |
7.3 |
233 |
31 |
195 |
37 |
*With flange plate |
|
0.55 |
6 |
154 |
34 |
129 |
41 |
|||
|
0.37/0.18 |
4/8 |
233/116 |
15 |
195/96 |
18 |
|||
|
0.37/0.12 |
4/12 |
233/77 |
15 |
195/64 |
18 |
|||
Solid pinion
|
Module |
Teeth |
Shifted factor |
|
M3.0 |
10T (11T) (13T) 15T |
0.5 |
|
M3.5 |
9T 11T (12T) (13T) |
0.5 |
|
M4.0 |
8T 9T 10T (11T) 13T |
0.5 |
|
Output Shaft |
S24: Dia: 24mm |
*Remark: ( ) There is 90mm in length of solid pinion, besides 70mm.
Certificate:
- CE Approved
- China CCC certificate(3C)
Order Information:
- Minimum Order: Negotiable
- FOB: Taichung port, Keelung port
